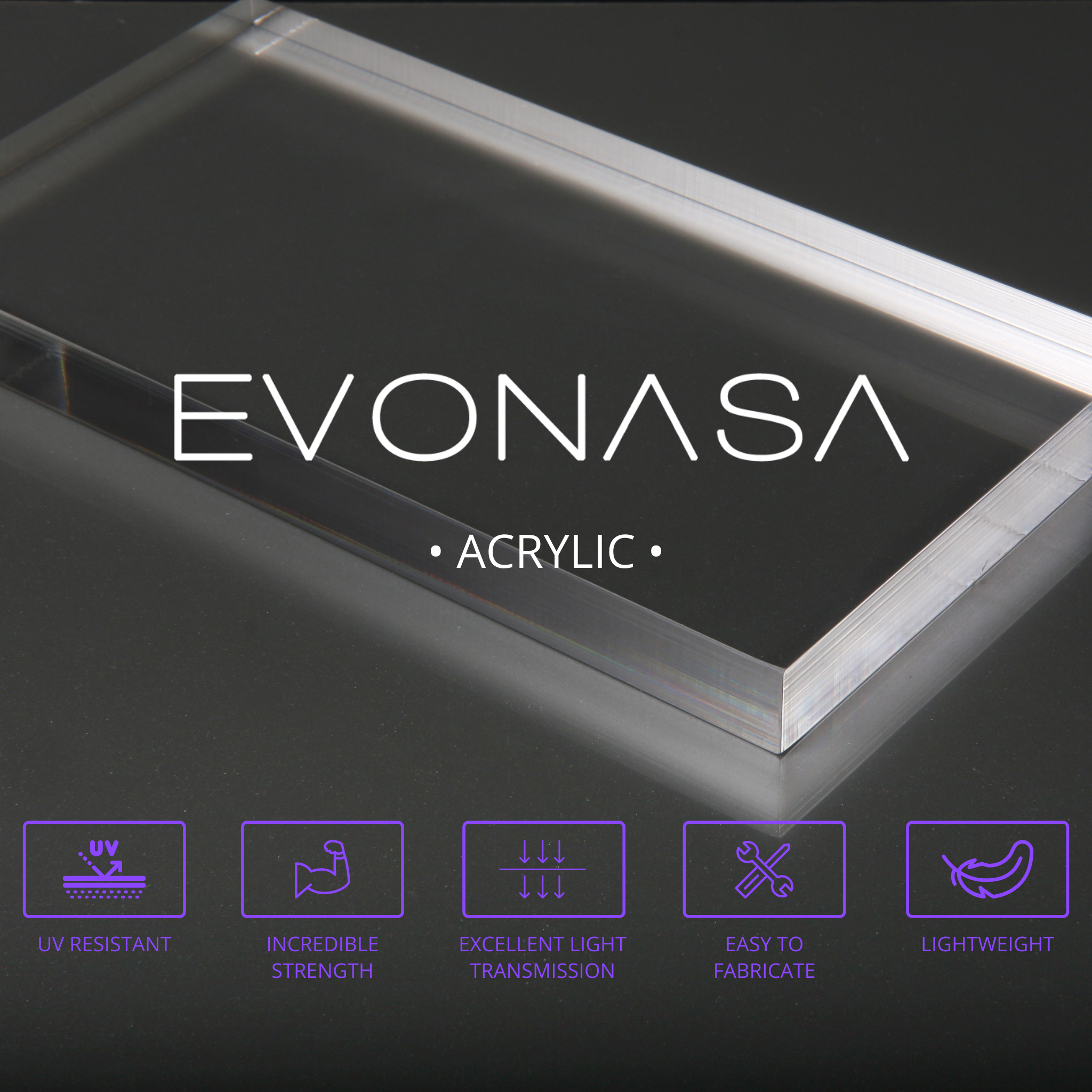

Acrylic sheet with Evonasa logo and 5 material properties

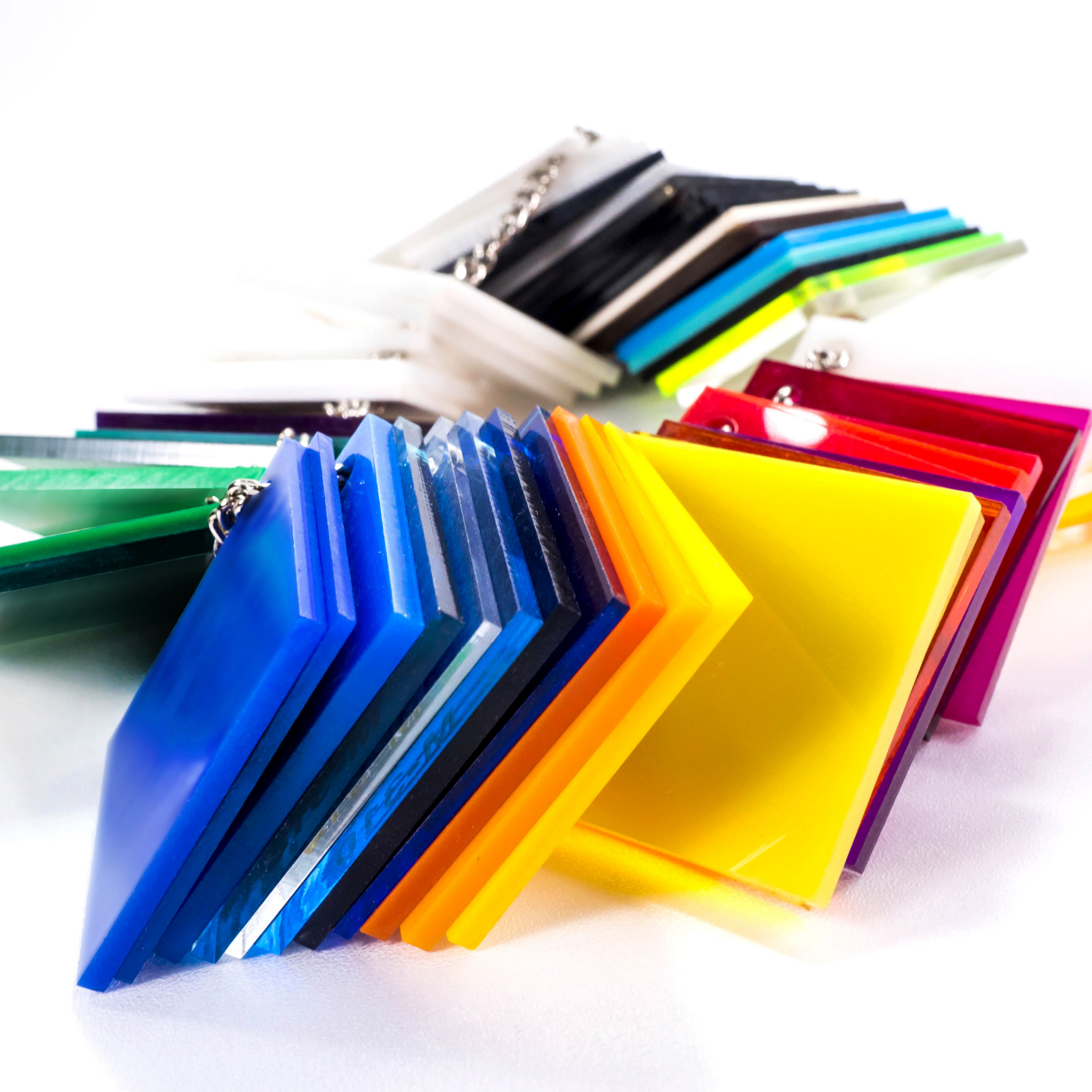

Acrylic sheet samples in multiple colours on a chain
Fish tank made from acrylic sheet
Office desk divider made from acrylic sheet with people sitting at the table
  • Load image into Gallery viewer, Acrylic sheet with Evonasa logo and 5 material properties
  • Load image into Gallery viewer, Acrylic sheet samples in multiple colours on a chain
  • Load image into Gallery viewer, Fish tank made from acrylic sheet
  • Load image into Gallery viewer, Office desk divider made from acrylic sheet with people sitting at the table

Acrylic Sheet

Regular price
£0.00
Sale price
£0.00
Regular price
Sold out
Unit price
per

FREE DELIVERY (1-2 working days)

Evonasa's flat acrylic sheet has been manufactured using world class colour matching facilities, machinery and premium resins. The result is a truly cutting edge acrylic sheet ideal for applications such as display, office dividers and point of sale.

Compared with glass, this flat acrylic sheet is approximately half the weight and shares a similar level of optical clarity.

Evonasa's flat acrylic sheet is easy to fabricate and thermoform and has a high gloss finish.

ACRYLIC SHEET

• MATERIAL BENEFITS •

• LIGHT TRANSMISSION •

Evonasa's clear acrylic sheet delivers high optical clarity which allows it to be a fantastic glazing material and ideal for applications such as poster covers and office dividers.

•  SIMPLE INSTALLATION •

• LIGHTWEIGHT •

Evonasa's acrylic sheet can be thermoformed, polished, engraved, bonded, cut, bent, machined and screen printed upon. It's perfect for fabrication applications such as furniture and glazing. It's also ideal for print and display applications such as point-of-sale and signage.

•  DESIGN OPTIONS •

Evonasa's acrylic sheet can be thermoformed, polished, engraved, bonded, cut, bent, machined and screen printed upon. It's perfect for fabrication applications such as furniture and glazing. It's also ideal for print and display applications such as point-of-sale and signage.

ACRYLIC SHEET

• APPLICATIONS •

•   FABRICATION •

   Applications include:

  • Commercial & structural glazing
  • Convention displays
  • Interior design
  • Aquariums
  • Swimming pool windows
  • Submarine windows
  • Furniture

•  PRINT & DISPLAY •

   Applications include:

  • Point-of-sale
  • Signage
  • Poster covers
  • Displays
  • Cabinets
  • Home decor
  • Wall shelves

ACRYLIC SHEET

• INSTALLATION •

•   ROUTING •

Evonasa's clear acrylic has crystal clear edges. Ideally an HSK tool holder would be used to minimise the chatter during routing which will ultimately provide a smoother finish. Set the RPM to be greater than 32,000 and ensure a solid carbide bit, designed for use with acrylic, is used. If the RPM cannot be set to be above 32,000, polishing may be necessary for a near perfect finish. Firm up the best settings and polishing bits with your tooling vendor.

•  STORAGE & HANDLING •

Storage of acrylic sheets should be indoors if possible. If this is not possible, ensure that the sheets are suitably covered to protect from water/rain and sunlight. Store the sheets horizontally on a dry and flat surface and preferably on fit for purpose pallets. Avoid stacking the pallets to a height of greater than 1 meter and avoid stacking sheets of different lengths and width in the same stack.

•   BENDING & ANNEALING •

It's possible to create straight line bends with the aid of electrical strip heaters applied along the bend lines. Allow the acrylic to cool to ambient temperature after line bending. To minimise the impact of stress on the acrylic, annealing in an air circulation oven is recommended after line bending.

•  DRILLING •

An acrylic specific bit is the ideal bit for drilling acrylic sheet. Metal and wood bits can also be used but are not optimal.

•   OPERATING TEMPERATURE •

The operating temperature range for acrylic sheet is approximately -40 degrees celcius to 80 degrees celcius.

•  CUTTING •

Conventional workshop equipment (e.g. a circular saw, hand saw or band saw) can easily cut and saw Evonasa's flat acrylic sheet.

  • Using a hand saw is difficult to produce an edge with a good finish.
  • Using a band saw is useful for cutting prior to the final finish.
  • Using a circular saw can create a smooth edge if fed through slowly.
  • Using a laser cutting tool can generate a fantastic final finish and often polishing is not required.

•   CLEANING •

Panel surfaces can be kept clean using warm water and a new chamois or microfibre cloth changing regularly to reduce the chance of transferring dirt, dust or particles. Harsh and volatile chemicals and cleaners are not required and may cause scratching or crazing.

•  POLISHING •

Polishing acrylic can be achieved by hand, abrasive, machine or flame polishing. Flame polishing can generate a highly glossy edge finish.

•   MACHINING & MILLING •

Evonasa's acrylic can be machined on standard high speed milling machines. Ensure that the sheet does not overheat during the cutting process. There are techniques that can be implemented to minimise overheating such as jetting air at the edge being cut.

•  PRINTING •

Screen printing on acrylic generates vibrant and sleek looks which are fantastic for contemporary decors. Thermoforming is still possible after printing. To minimise the damage caused by scratching, it's recommended to lightly coat the printed surface with a clear, acrylic-friendly lacquer. Ensure that the inks and adhesive vinyls used are suitable for use with acrylic.

•   BONDING •

Acrylic is typically bonded using solvent based glues. Adhesives, solvents and welding can also be used. Mechanical bonding via the use of nuts and bolts is also common practice.

•  THERMOFORMING •

Prior to thermoforming or pre-drying acrylic sheet, remove the film. Free forming, drape forming, mould forming and vacuum forming are a few methods of thermoforming that can be used with acrylic. Temperatures approximately between 140 and 170 degrees celcius are required for forming.

ACRYLIC SHEET

• MATERIAL PROPERTIES •

•   MATERIAL PROPERTIES •

Download the brochure for more information
